Item # HUM HA041E1-PSL-5VDC
HA041E1-PSL-5VDC
Call for Price
- Guest Out of Stock
- Contact for ETA
- Minimum Order Qty: 1
- Available Only in Qtys of: 1
- Log in to see if custom discounts apply
Click image to enlarge
Item # HUM HA041E1-PSL-5VDC
HA041E1-PSL-5VDC
- UM : EA
- Weight: 1.00

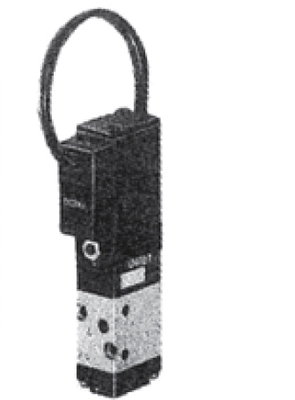

The 040 series solenoid valve achieves high reliability, powerful action, and low current with a thin-body 10mm (0.394in) valve width. All of these highly reliable 5-port valves incorporate flywheel diodes for surge suppression as a standard feature for highly reliable operation. Capable of mounting up to 20 units on a manifold, this series offers economy and diversity. Can operate double acting cylinders up to 16mm (0.630in) bore.
This valve has a Non-Locking Manual Override
Specifications
| MANUFACTURER | HUMPHREY |
| FUNCTION | 3 WAY, 2 POSITION |
| NORMAL STATE | NORMALLY CLOSED |
| RETURN | SPRING RETURN |
| PORT SIZE | M3 |
| MOUNT TYPE | MANIFOLD/SUB BASE |
| VOLTAGE | 5VDC |
| ELECTRICAL CONNECTION | PLUG IN WIRE LEADS |
| CONTROL | INTERNAL AIR PILOT |
Documents
×
