Item # CCS 6905GZEM12-7042-SET
6905GZEM12-7042-SET

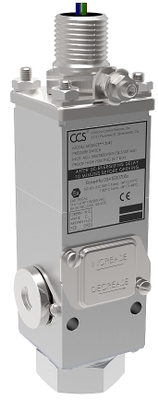

Click image to enlarge
Item # CCS 6905GZEM12-7042-SET
6905GZEM12-7042-SET
- UM : EA
- Highly reliable devices utilizing the CCS Dual-Snap Belleville disc spring principle pioneered by CCS’ engineers.
- Engineering based on aerospace technology.
- Rigid, compact and internally adjustable for convenient field set point adjustment.
- Repeatable and stable set points.
- Vibration and shock resistant.
- High cycle life.
- High over-pressure capability. (System and Proof)
- Certified explosion proof hermetically sealed electrical assembly for environmental protection.
- Various options for wetted materials and electrical ratings to meet a wide range of application requirements and media compatibility.
Specifications
| PORT CONNECTION TYPE | NPT FEMALE |
| PORT SIZE | 1/2" |
| CONNECTION MATERIAL | STAINLESS STEEL |
| CIRCUITRY | DPDT |
| DIAPHRAGM/PISTON MATERIAL | POLYIMIDE |
| SWITCH SETTING | FIELD ADJUSTABLE |
| ELECTRICAL CONNECTION | MALE CONDUIT, WIRE LEADS |
| SPECIAL OPTIONS | EXPLOSION PROOF |
| MANUFACTURER | CCS |
| MIN | 3 |
| PRESSURE SET POINT (PSI) | 0.8KG/CM2 (11.38PSI) DECR |
